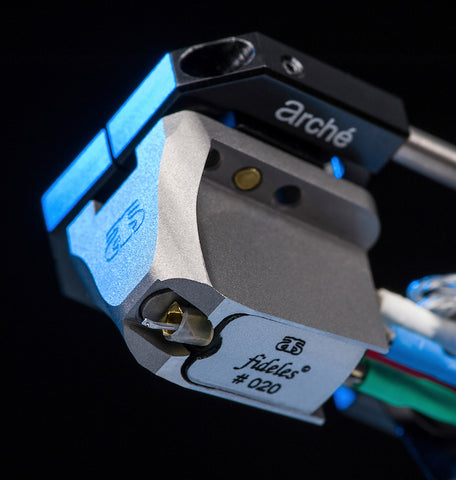

Acoustical Systems Fideles MI Phono Cartridge
Acoustical Systems Fideles MI Phono Cartridge Acoustical Systems Fideles MI Phono Cartridge Acoustical Systems Fideles MI Phono Cartridge
Acoustical Systems Fideles MI Phono Cartridge

Type: Phono Cartridges
Vendor: Accoustical Systems

Description:

Acoustical Systems Fideles.

We herewith proudly introduce the Fideles  - an all-new high-end phono cartridge, Fideles“ is derived from Latin / German and stands for „faithful, - as well as agile and lively“.

Unusual in this price class, the Fideles features a solid advanced Titanium Timet 1100 body of unparalleled energy transfer ability and unique combination of strength and light weight.

The generator system is a double-magnet - focused field - moving ferrum pipe - principle which gives a healthy high output of 5.5 mV.

Very easy handle for any phono stage and no need for a high-gain / moving coil phono input.

Any phono input with 35 to 50 dB gain and 47k to 100k impedance is fine.

The Fideles' Titanium body further features 3 rows of threads to allow perfect overhang in any headshell / tonearm.

The Fideles produces a very dynamic, live-like, colorful, open, transparent and natural sound and performs solidly several steps above it’s price range.

It features very high tracking ability - above 90 µm! -  and is very easy to align.

It’s relatively low body mass allows perfect synergy with a very wide selection of low to medium-high mass tonearms.

It easily rivals - not just in terms of it’s CNC formed Titanium body - high end cartridges in the price range of 2000 to 3500 US$ retails.

The Fideles has a world-wide retails price target of around US$ 1200 / EURO 990.

The Fideles was designed to set a new standard in the US$ 1200 to 2000 - price range of phono cartridges - in terms of technical input, value for money and performance alike.

Technical Specifications



Frequency response

18 Hz – 25 kHz +/- 2 dB

Channel balance

within 0.8dB @ 1kHz

Channel separation

better than 25dB @ 1kHz

Output voltage

5.5 mV, 1kHz @ 5 cm/sec

Static compliance

35 mm/N

Dynamic compliance @ 9-10 Hz

17 mm/N

Vertical tracking angle

22°

Stylus

true elliptical 7µ x 2.5µ



factory-replaceable

Recommended load resistance

47 -100 kΩ

Recommended load capacitance

phono cable + 0-max 200pF









Cartridge body mass

10.5 g









Recommended tracking force

17 mN to 18 mN
