Brinkmann Audio Edison Mk II Phono Stage
Brinkmann Audio Edison Mk II Phono Stage

Type: Phono Preamplifiers
Vendor: Brinkmann Audio

Description:

Edison Mk II Phono Stage

The Edison phono stage is the perfect choice for all discerning audiophiles who

a) want to extract maximum sound quality from their vinyl treasures and or

b) want to use more than one tonearm.

The Edison offers three balanced RCA inputs, two of these are also available in XLR. Each input can be individually optimized in terms of gain (16 steps) and load (12 steps between 50 Ohms and 47 kOhms) for the attached cartridge. A 1:1 input transformer of superb quality can be switched in or out for each input. All the settings are saved in an EPROM when another input is selected (either by button or by remote control). All special adjustments like gain, xfmr or mono are only set when you select that special input where you had those adjustments before.

The Edison’s highly innovative circuitry uses bipolar transistors and selected NOS Telefunken tubes. The EQ is switchable from RIAA to IEC and is implemented partially as plate load and partially as feedback loop. The phase inversion for the balanced outputs is handled by a third tube stage. Visually as well as sonically, the Edison complements the Marconi line stage perfectly.

Due to different demands from different customers, there are now two different models of the Edison available. The version “mono” has a switch for the selection between stereo and mono. The version “phase” features a phase selection that can be switched between 0° and 180°.

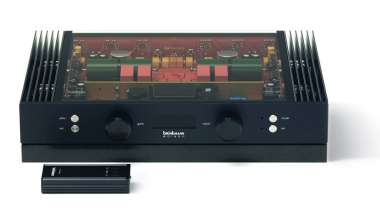

Brinkmann Edison

Specifications

THD/IM distortion 0,01%/0,05%
S/N ratio MM/MC 82/78 dBA
Frequency response DC ... 250 kHz
Gain adjustable, max. 66 dB
Output impedance 600 Ohm symmetrical
Input impedance MC 47 Ohm ... 47 kOhm
Input capacitance MM 50 pF
Dimensions (WxHxD) 420 x 95 x 310 mm (with granite base);
power supply 120 x 80 x 160 mm
Weight 12 kg; granite base 12 kg;
power supply 3,2 kg
Included in delivery phono preamplifier, power supply, power cord, granite base
