Libran Balanced Interconnect Cable
Looking for balanced audio interconnects? The Libran balanced interconnect cable betters the specifications of standard microphone cables and will give you detail, dynamics, and clarity.
Balanced audio leads for both long and short balanced interconnections such as equipment-to-equipment or equipment-to-powered speakers needing a balanced audio cable - the Libran is an excellent balanced audio interconnect.

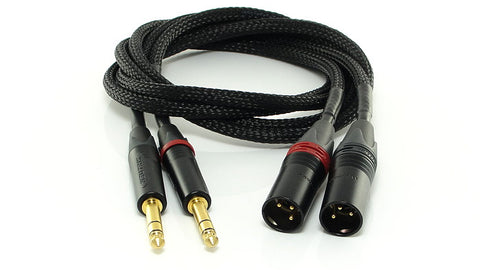

Available in paired lengths of your choice and terminated in gold plated Neutrik XLRs and/or Neutrik TRS-wired jack plugs .
Appropriately named Libran because they're balanced cables, the Librans are graceful in their signal handling.
Having a similar dielectric constant to polypropylene the Libran's insulation is a "fast substrate" making it low-loss.
Unlike polypropylene the Libran is far more flexible and will form a bend radius down to 7cm.
It is ultra-low capacitance at only 45pf/m across phases, and 75pf/m either phase to shield.
Excellent balance and noise rejection is achieved through its twisted pair construction and foil plus braid shielding which is connected at both ends.
All terminations give 360° shielding for high interference immunity.
The Libran is suitable for use in both low-impedance, and (up to) 600 Ohm balanced systems.
|Available terminations||XLR male; XLR female; TRS jack plug: 3-circuit|
|Capacitance across phases||45pf/metre (13pf/foot)|
|Capacitance phases to shield||75pf/metre (23pf/foot)|
|Voltage rating||300V rms|
|Lay-up||Close-coupled slow twist pair|
|Shield||90% tined copper braid over aluminium foil + drain wire|
|Jacket and braid||PVC|
|Suggested Direction||Marked extrusion direction|
