Description:

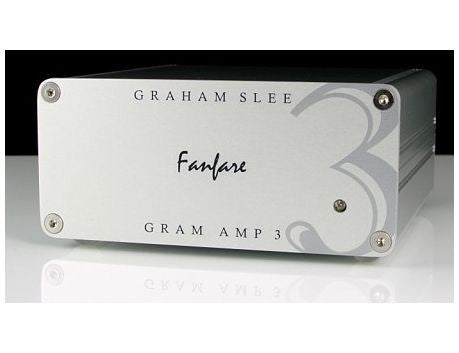

Phono Stage/Preamp: Gram Amp 3 Fanfare
Please note: Due to the large volume of orders currently your order that would normally take 2 weeks to be dispatched, could be delayed and lead times of up to 4 weeks can be expected currently.
An RIAA phono stage preamp dedicated to moving coil cartridge pre-amplification.
The Gram Amp 3 Fanfare phono stage preamp is a dedicated (fixed gain) conventional output moving coil cartridge phono stage preamp designed for moving coil phono cartridges having outputs in the range 0.3 to 1.2 mV (300 to 1,200 µV). Corresponding output being 240 - 954mV (1kHz reference).
Ships in approximately 3 weeks.
Specifications
Input sensitivity range: 0.3mV to 1.2mV
Output for input sensitivity range: 240mV - 954mV
Maximum input level: 6.16mV (ref 1 kHz)
Gain (ref 1kHz): 58dB
Input impedance resistive: 100 Ohms
Output noise: (CCIR Q-Pk 22Hz-22 kHz) -67dB
Equivalent Input Noise (EIN) -125dB
Reproduction characteristic: RIAA within 0.5dB total deviation 20Hz-20kHz
Total Harmonic Distortion plus noise measured at 80Hz, 1kHz, 5.6 kHz and 16 kHz: less than 0.05% (typically <0.015% at 1 kHz)
Channel balance: 0.1dB
Channel separation: 64dB
The Gram Amp 3 Fanfare is a better choice than a budget universal phono stage and its performance is far better than its mid-market price may suggest...
