Description:

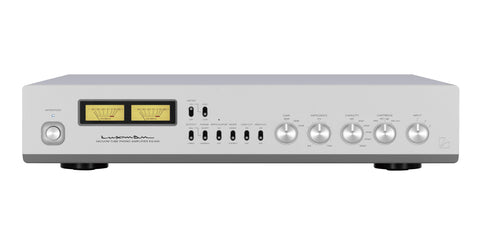

The joy of analog reproduction is the indulgence of the harmonic density and tonal character of vinyl playback, faithfully reproducing sound vibration and resonance inscribed on analog records without interruption. The EQ-500 phono equalizer amplifier is a vacuum tube design for all stages to provide the ultimate experience in the expressive and colourful reproduction of music. Fine adjustment and switching functions that are easily accessible on the elegant front panel allow you to enjoy the real pleasure of analog reproduction. The debut of LUXMAN's masterpiece phono equalizer amplifier, the EQ-500, brings a new dimension that offers an extensive menu of the finest details of analog reproduction allowing you to recreate that ideal sound from your memory.
Specifications:
Circuiting system | SRPP, final stage cathode follower Non-feedback CR type equalizer |
---|---|
Vacuum tube used | ECC83 x 4 pieces, ECC82 x 2 pieces, and EZ81 x 1 piece |
Input sensitivity (1kHz, When the gain is set to 36dB) | MM: 4mV MC: high 0.44mV, MC: low 0.18mV |
Input impedance | MM: 30kΩ to 100kΩ (variable) MC: high 40Ω, MC: low 2.5Ω |
Rated output/output impedance | 250mV/850Ω |
Gain(1kHz, When the gain is set to 36dB) | MM: 36dB MC: high 55dB, MC: low 63dB |
Maximum allowable input (1kHz) | MM: 300mV, MC: high 34mV, MC: low 13mV |
RIAA deviation | MM/MC high/MC low: 20Hz to 20kHz (±0.3dB) |
Channel separation (10kHz) | 65dB |
---|---|
Input | Unbalanced line x 3 |
Output | Unbalanced line x 2, Balanced line x 1 |
Power supply | 230V~(50Hz) / 115V~(60Hz) |
Power consumption | 47W |
External dimensions | 440(W) x 92(H) x 397(D) mm front side knob of 5mm and rear side terminal of 12mm included in depth |
Net weight | 12.5kg (main unit) |
Accessories | Power cable |
