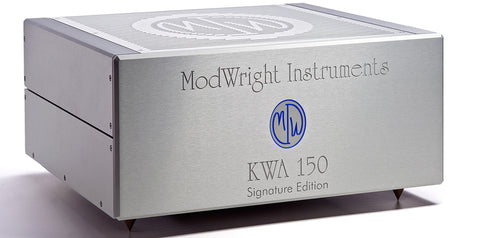

Modwright Instruments KWA 150SE Stereo Power Amplifier
The ModWright KWA 150 Signature Edition provides the strengths of both tube and solid state products: 3-D sound-staging, holographic imaging, and a beautiful midrange of tubes, combined with sparkling highs, low distortion, bass resolution, and control of solid state.
The heart of the KWA 150 SE amplifier is a single voltage gain stage called the Solid State Music Stage. The circuit was developed by Alan Kimmel, creator of the exceptional vacuum tube Mu stage.
Features include: high-low bias switch, stereo/bridge-mono switch and true balanced floating inputs, accepting balanced and unbalanced inputs. The design incorporates a regulated power supply for the input stage, Cardas best connectors and oversized heat sinks. The first watts operate in pure Class A.
The KWA 150 SE uses no global feedback, is direct-coupled, fully differential, dual-mono, bridgeable, and designed and built in the USA.
In the Signature Edition, we have taken the KWA 150 and applied nearly two years of additional R&D and further thought into how to FURTHER improve upon the award-winning KWA 150.
Summary of key elements of SE upgrades:
- Upgraded model of Lundahl input transformer for improved speed and dynamics.
- Circuit design revisions to input circuits that lower distortion and improve dyanmics and resolution.
- Cryo-treated, solid core ultra-pure input wiring and 12GA stranded audio-grade output signal wire to binding posts.
- Revised capacitor bank (current storage design) that increases total storage (capacitance) and also lowers power supply impedance, which translates to faster current delivery to the output stage.
This all translates to the following in terms of sonics:
- A more open and resolving overall presentation.
- Tighter and faster bass and transients.
- Improved speed and dynamics, whilst still retaining tube-like midrange qualities.
- Improved soundstage and low-level cues due to an even LOWER noise floor.
|Power:||150w into 8ohms, 250w into 4ohms|
|Power (Bridged):||450w into 8ohms, 650w into 4ohms|
|Inputs:||1x RCA, 1x XLR|
